N2XY (YXV) / N2XY-O / N2XY-J

Dimensions

Nominal cross-section	Overall diameter (Approx)	Net Weight (Approx)	Delivery Lenght	Conductor DC Resistance	Current carrying capacity in
mm²	mm	kg/km	m	ohm/km	In conduit at 20°C A	In air at 30°C A
1×1,5	5,6	45	1000	12,1	39	32
1×2,5	6	60	1000	7,41	51	42
1×4	6,5	80	1000	4,61	66	56
1×6	7	100	1000	3,08	82	71
1×10	8,5	140	1000	1,83	109	96
1×16	9	200	1000	1,15	139	128
1×25	11	300	1000	0,727	179	173
1×35	12	400	1000	0,524	213	212
1×50	13,5	510	1000	0,387	251	258
1×70	15	700	1000	0,268	307	328
1×95	17	1000	1000	0,193	366	404
1×120	19	1200	1000	0,153	416	471
1×150	21	1500	1000	0,124	465	541
1×185	23	1900	1000	0,0991	526	626
1×240	26	2400	1000	0,0754	610	749
1×300	28	3100	1000	0,0601	689	864
1×400	32	3900	1000	0,047	788	1018
1×500	36	4950	1000	0,0366	889	1173
1×630	41,5	6250	1000	0,0283	980
2×1,5	11	170	1000	12,1	37	26
2×2,5	12	210	1000	7,41	49	35
2×4	12,5	255	1000	4,61	64	46
2×6	13,5	320	1000	3,08	79	58
2×10	16	450	1000	1,83	106	79
2×16	17,5	620	1000	1,15	137	104
2×25	21	900	1000	0,727	176	141
2×35	23	1170	1000	0,524	213	174
2×50	26	1500	1000	0,387	252	212
2×70	29,5	2100	1000	0,268	310	268
2×95	34	2800	1000	0,193	361	331
2×120	37,5	3500	500	0,153	412	385
2×150	41,5	4300	500	0,124	464	440
2×185	47	5400	500	0,0991	525	507
2×240	52	7000	500	0,0754	608	595
3×1,5	11	180	1000	12,1	30	24
3×2,5	12	230	1000	7,41	40	32
3×4	13	300	1000	4,61	52	42
3×6	14	380	1000	3,08	64	53
3×10	16	540	1000	1,83	86	73
3×16	18	760	1000	1,15	111	96
3×25	22	1100	1000	0,727	143	130
3×35	24	1480	1000	0,524	173	160
3×50	28	1900	1000	0,387	205	195
3×70	32	2750	1000	0,268	252	247
3×95	35	3600	1000	0,193	303	305
3×120	40	4500	500	0,153	346	355
3×150	43	5600	500	0,124	390	407
3×185	49	7000	500	0,0991	441	469
3×240	54	9100	500	0,0754	511	551
3×300	61	11350	500	0,0754	580	638
3×400	67	14400	500	0,0754	663	746
3×16+10	20	850	1000	1,15-1,83	111	96
3×25+16	23	1300	1000	0,727-1,15	143	130
3×35+16	25	1600	1000	0,524-1,15	173	160
3×50+25	30	2000	1000	0,387-0,727	205	195
3×70+35	34	3000	1000	0,268-0,524	252	247
3×95+50	38	4000	1000	0,193-0,387	303	305
3×120+70	43	5100	500	0,153-0,268	346	355
3×150+70	46	6100	500	0,124-0,268	390	407
3×185+95	52	7750	500	0,0991-0,193	441	469
3×240+120	58	10100	500	0,0754-0,153	511	551
3×300+150	64	12600	250	0,0601-0,124	580	638
3×400+185	72	16000	250	0,0470-0,0991	663	746
4×1,5	12	210	1000	12,1	30	24
4×2,5	13	270	1000	7,41	40	32
4×4	14	350	1000	4,61	52	42
4×6	15	450	1000	3,08	64	53
4×10	18	650	1000	1,83	86	73
4×16	20	920	1000	1,15	111	96
4×25	24	1400	1000	0,727	143	130
4×35	27	1800	1000	0,524	173	160
4×50	30	2400	1000	0,387	205	195
4×70	35	3450	1000	0,268	252	247
4×95	40	4550	1000	0,193	303	305
4×120	45	5700	500	0,153	346	355
4×150	50	7050	500	0,124	390	407
4×185	56	8800	500	0,0991	441	469
4×240	62,5	11500	500	0,0754	511	551
4×300	68	14400	250	0,0601	580	638
4×400	77	17700	250	0,047	663	746

Additional information

Standard	IEC 60502-1, IEC 60502, BS 7889
Technical Data	Max.Operating Temperature: 90 ° C Max.Short Circuit Temperature: 250 ° C Rated Voltage:, 0,6/1 kV

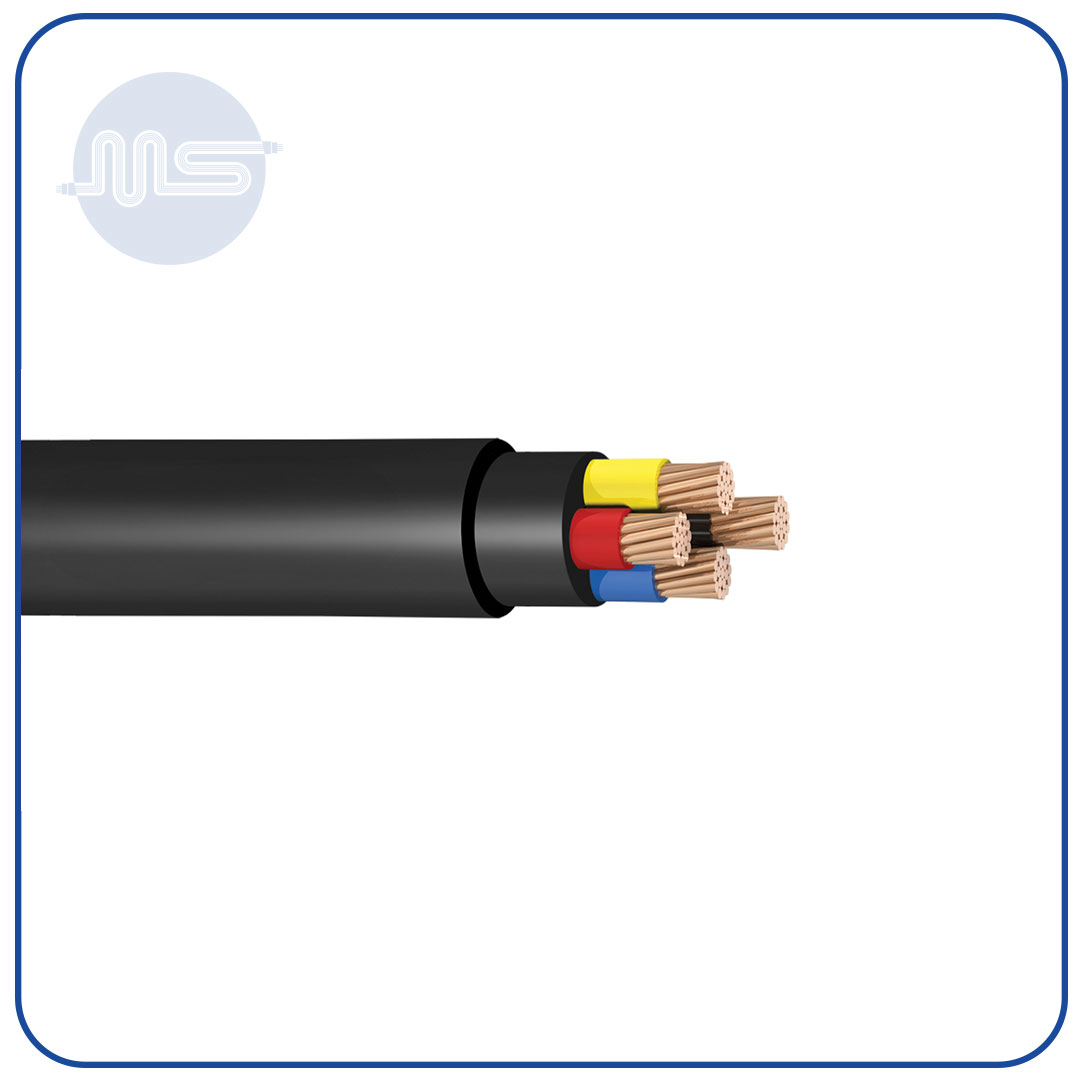

Construction	1.Solid or stranded copper conductor 2.XLPE insulation 3.PVC filler 4.PVC Outer sheath
Applications	These cables with low dielectric loss are used in energy facilities where sudden load changes occur in residential and industrial areas, outside, under the ground and in cable ducts.
