Dimensions
| Section (mm2) |
Resistance at 20°C (Ohm/km) |
External Diameter (mm) |
Weight (kg/km) |
| 1×1,5 | 11,90 | 1.37 | 13 |
| 1×2,5 | 7,30 | 1.75 | 21.4 |
| 1×4 | 4,57 | 2.21 | 34.1 |
| 1×6 | 3,04 | 2.71 | 51.3 |
| 1×10 | 1,81 | 3.51 | 86 |
| Section (mm2) |
Resistance at 20°C (Ohm/km) |
External Diameter (mm) |
Weight (kg/km) |
| 1×1,5 | 11,90 | 1.37 | 13 |
| 1×2,5 | 7,30 | 1.75 | 21.4 |
| 1×4 | 4,57 | 2.21 | 34.1 |
| 1×6 | 3,04 | 2.71 | 51.3 |
| 1×10 | 1,81 | 3.51 | 86 |

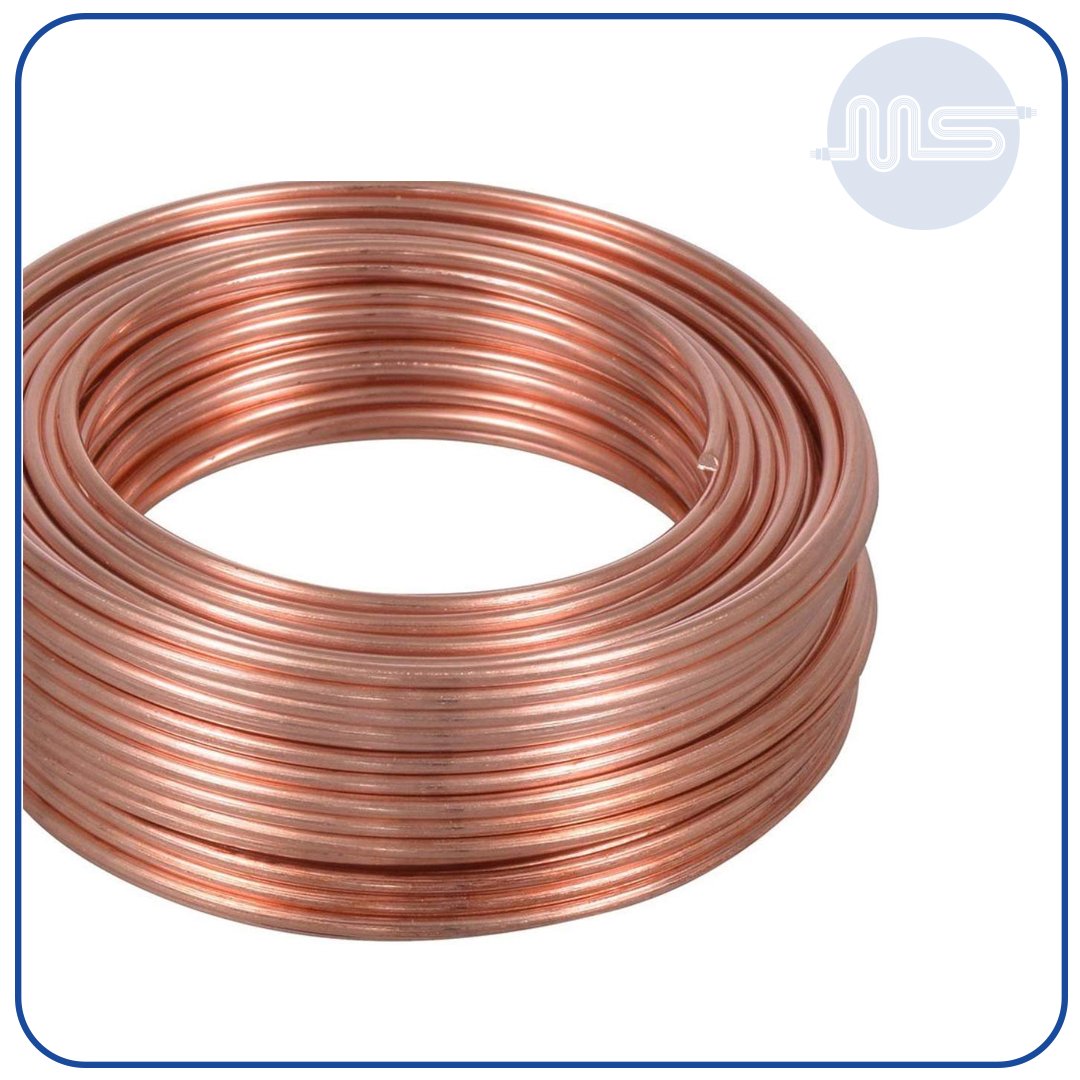

| Construction | Solid Copper Conductor |
|---|---|
| Certification / Standard | IEC 60228 / BS EN 60228 |
| Structural feature | Solid copper conductors produced by drawing machine and annealed to obtain maximum tensile strength. |
| Conductor | Copper conductor (Class I) according to BS EN 60228:2005 (previously BS6360), EN 60228, and IEC 60228. |
