MS Company for Cable and Busbar Production/Ltd.

N2XRY

CU / XLPE / PVC / SWA / PVC

Additional information

Standard

IEC 60502-1

Technical Information

Max. Operating Temperature : 90 °C
Max. Short circuit temperature : 250°C
Rated Voltage : 0.6/1 kV

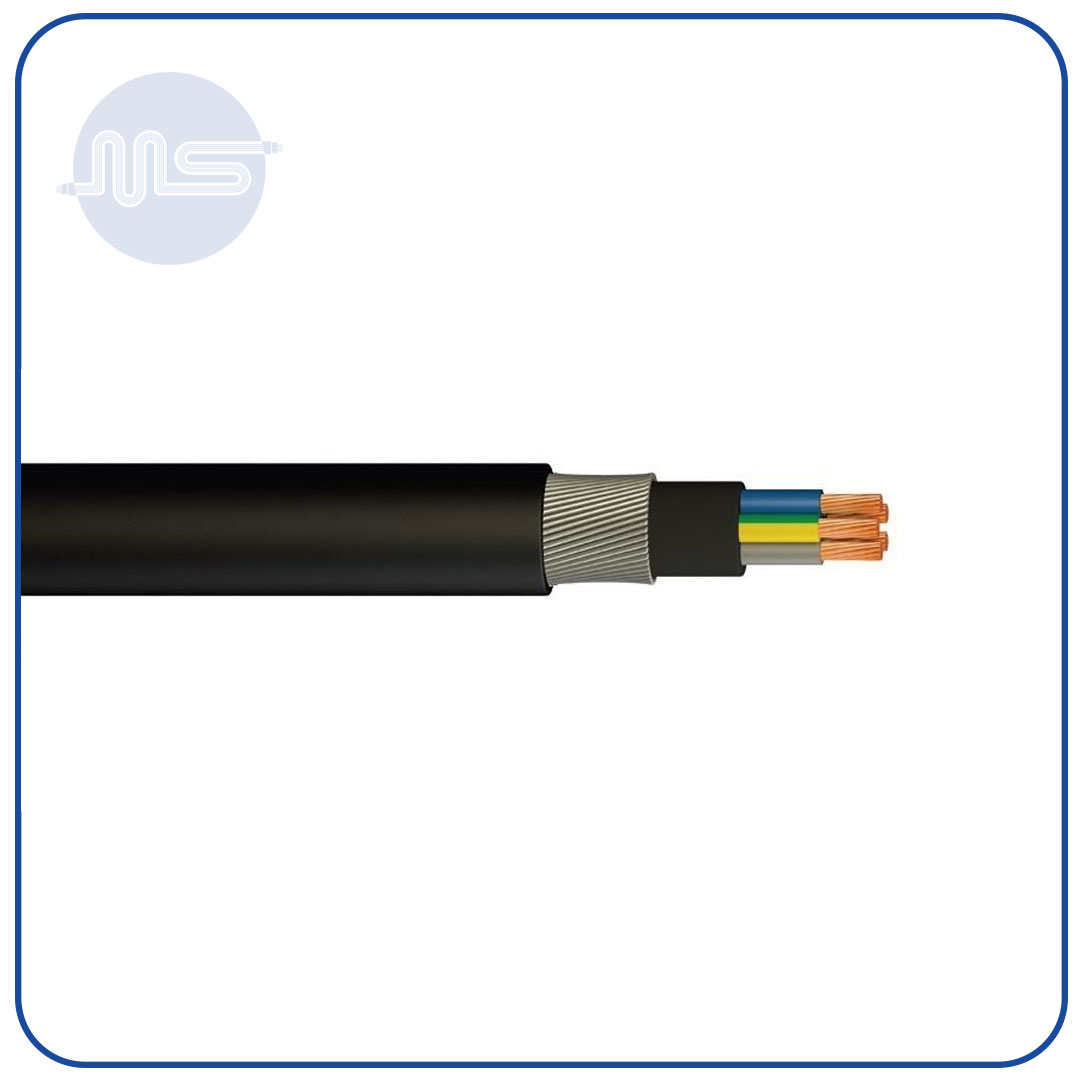

Cable Construction

1- Solid or Stranded Copper Conductor
2- XLPE Insulation
3- PVC Filler
4- Galvanized Steel Wire Armor (SWA) or Aluminum Wire Armor (AWA)
5- PVC outer sheath

Application

These cables, which are resistant to mechanical stress and have very low dielectric loss, are used in energy facilities where sudden load changes occur in residential and industrial areas, outside, under the ground and in cable ducts.
