NYAe / H05V-U / H07V-U

Dimensions

Nominal cross-section	Overall diameter (Approx)	Net Weight (Approx)	Delivery Lenght	Conductor DC Resistance	Current carrying capacity in
mm²	mm	kg/km	m	ohm/km	In conduit at 20°C A	In air at 30°C A
1	2,5	14	100	18,1	11	19
1,5	2,8	20	100	12,1	16	25
2,5	3,4	31	100	7,41	21	34
4	3,9	46	100	4,61	27	45
6	4,4	54	100	3,08	35	57
10	5,6	108	100	1,83	48	78

Standard	60227 IEC 01,60227 IEC 05,BS 6004, VDE 0281
Technical Information	Max. Operating Temperature : 70 °C Max. Short circuit temperature : 160°C Rated Voltage : 300/500 V

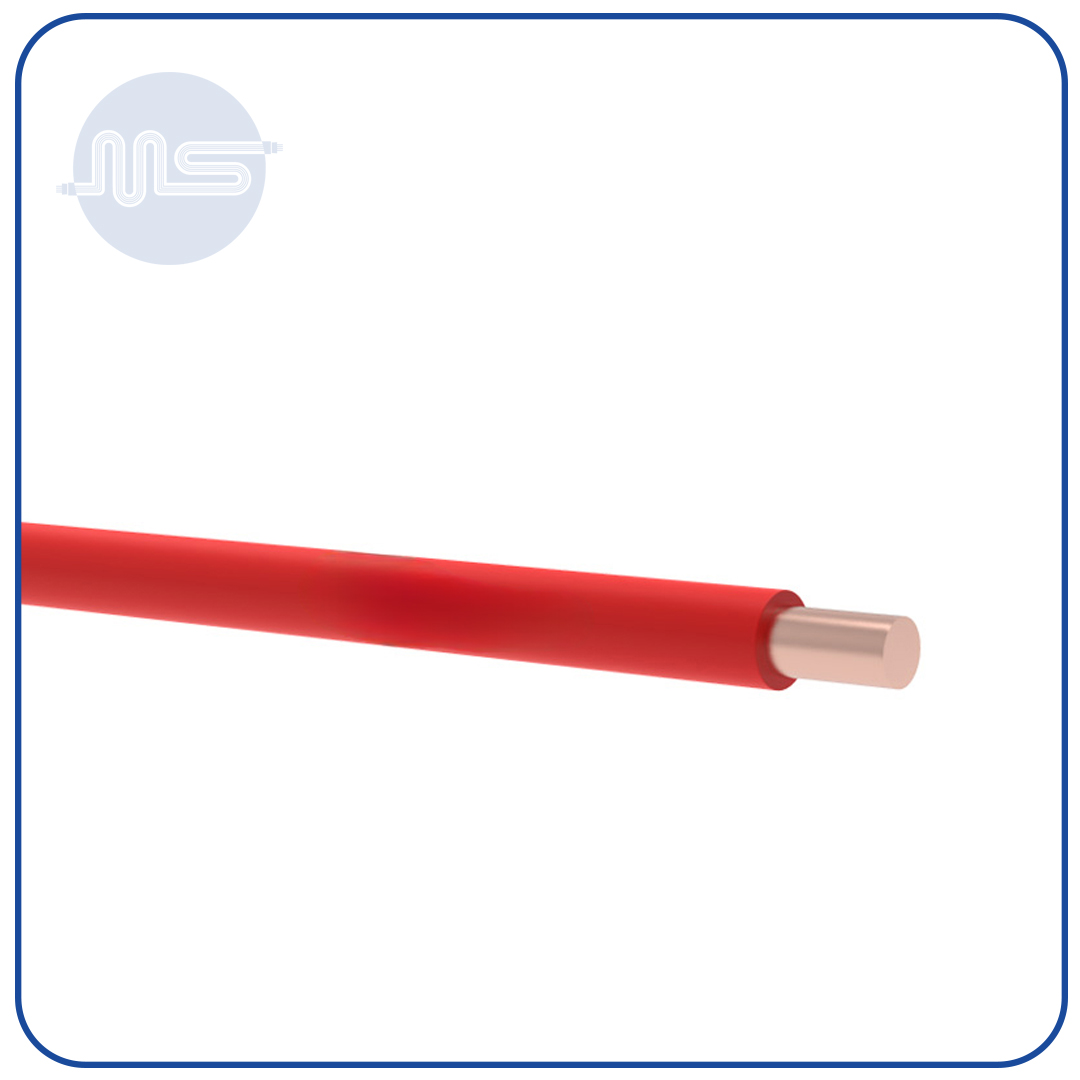

Cable Construction	1. Solid copper conductor 2. PVC insulation
Application	In dry rooms switch and distribution boards , for lying in conduit on and under plaster and on insulating support above plaster
